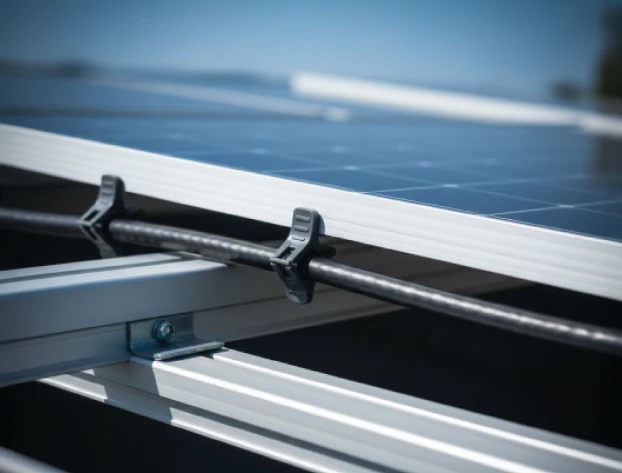

Solar DC Cables
SanFlex cables are designed for connecting photovoltaic power supply systems. They are dedicated to the photovoltaic system direct current (D.C.) side with a nominal D.C. voltage of a 1.5kV. These cables can be used indoor & outdoor for flexible and fixed installations with high mechanical strength in extreme weather conditions. cables are designed to withstand the demanding environmental conditions that arise in any fixed, mobile, roof or architecturally integrated photovoltaic installation.
PVC-Based Solar DC Cable
Conductor:
Flexible Tinned fine copper strands, acc. To IEC 60228, class 5
Insulation:
Crosslinked Halogen Free/ Flame Retardant Insulation/ Type A Pvc, Color : Grey
Outer Sheat:
Electrical:
- Voltage Test: 6500v as per EN 50395
- Max. Permissible Operating voltage DC: 1.5 kV, Maximum Permitted DC Voltage: 1.8 kV
- Maximum Permitted AC Voltage: 1 kV Spark Test: 6000 Vac (8400 Vdc)Voltage
- Withstand: 6.5 kV Ac & 15 kV DC.
Temperature Thermal Characteristics:
- Ambient Temperature: -40°C ~ +90°C
- Maximum Temperature at Conductor: 40°C ~ 120°C
Applications
SANFLEX PVC solar cables are suitable for:
Auxiliary DC wiring
Balance-of-system connections
Key Features & Benefits
Stable PVC insulation
Suitable for indoor & controlled outdoor use
Good flexibility & mechanical strength
Reliable electrical conductivity
Suitable For
Solar
EPC companies
Renewable energy installers
OEM solar equipment suppliers
| Single Core (Sq. mm.) |
Insulation Thickness (mm.) |
Sheath Thickness (mm.) |
Overall Diameter (mm.) |
Tolerance on Diameter | Tinned Cu. Max. Resistance (@20°C) |
Current Carrying Capacity (In Air) |
|---|---|---|---|---|---|---|
| 1.5 | 0.7 | 0.8 | 4.8 | ± 0.4 | 13.7 | 30 |
| 2.5 | 0.7 | 0.8 | 5.2 | ± 0.4 | 8.21 | 41 |
| 4 | 0.7 | 0.8 | 5.5 | ± 0.4 | 5.09 | 55 |
| 6 | 0.7 | 0.8 | 6 | ± 0.4 | 3.39 | 70 |
| 10 | 0.7 | 0.8 | 6.2 | ± 0.4 | 1.95 | 95 |
| 16 | 0.7 | 0.8 | 7.8 | ± 0.4 | 1.24 | 130 |
Benefits
Certified Quality & Compliance
Certified Quality & Compliance
SANFLEX® cables are manufactured in compliance with ISI (IS 694) standards and follow the ISO 9001:2015 quality management system. Every product is produced under strict process control and batch testing to ensure consistent quality, safety, and reliability.
Enhanced Electrical & Fire Safety
Enhanced Electrical & Fire Safety
SANFLEX® FRLS / FRLSH cables are designed to minimize flame spread and reduce smoke emission during fire incidents. This improves visibility and evacuation safety while protecting electrical systems, making them suitable for safety-critical installations.
Superior Electrical Performance
Superior Electrical Performance
Manufactured using high-conductivity copper and aluminium conductors, SANFLEX® cables deliver stable electrical performance. Their low-resistance design helps reduce power loss and ensures efficient current flow even under demanding load conditions.
Mechanical Strength & Durability
Mechanical Strength & Durability
SANFLEX® cables feature uniform insulation thickness and high mechanical strength, ensuring durability in demanding installations. Their excellent flexibility allows easy routing and installation while resisting abrasion, heat, and moisture.
Climate & Environment Resistance
Climate & Environment Resistance
Engineered for challenging conditions, SANFLEX® cables perform reliably in hot, humid, dusty, and outdoor environments. UV-resistant options are also available for solar and outdoor applications, ensuring long service life.
Customisation & Packaging Flexibility
Customisation & Packaging Flexibility
SANFLEX® offers custom cable sizes, colours, insulation types, and packaging options to meet project-specific requirements. Products can be supplied with OEM or export-compliant labelling for domestic and international markets.
Energy Efficient & Sustainable
Energy Efficient & Sustainable
With optimized conductor design and high-quality materials, SANFLEX® cables help reduce electrical losses and improve energy efficiency. Their long service life also reduces replacement frequency, supporting sustainable infrastructure.
All SANFLEX® products are PVC-based and can be manufactured as per customer specifications for domestic and international markets.
